RAIS: Takisawa Taiwan's LX2500ML7 CNC turning device is a complete solution for high-precision machining

2025-12-193 min.

Change language: Albania Bulgaria N. Macedonia Romania Serbia

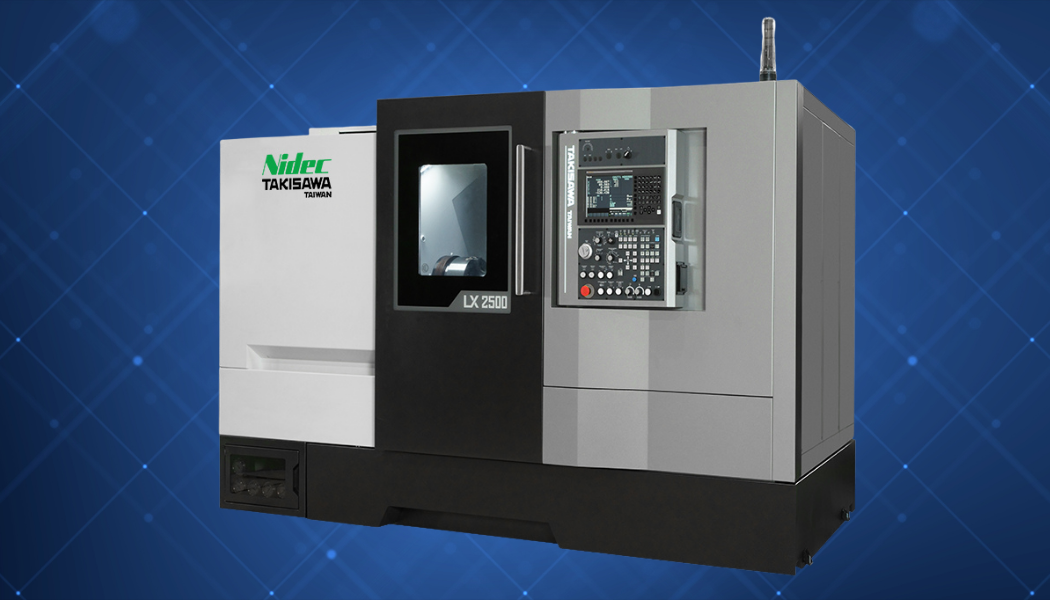

The lathe LX-2500 from Takisawa Taiwan is high tech machinery from a new generation, which offers high speed and precise processing thanks to its incredibly durable and stable construction. The device is offered in different configurations regarding the spindle, the revolving nozzle and the tailstock, and its overall design is optimized to counteract thermal deformations. "The LX-2500 series lathes are designed for complex high-precision machining in mass and serial production, combining turning, milling, drilling and threading operations," the leading manufacturing company RAIS told BalkanEngineer.com.

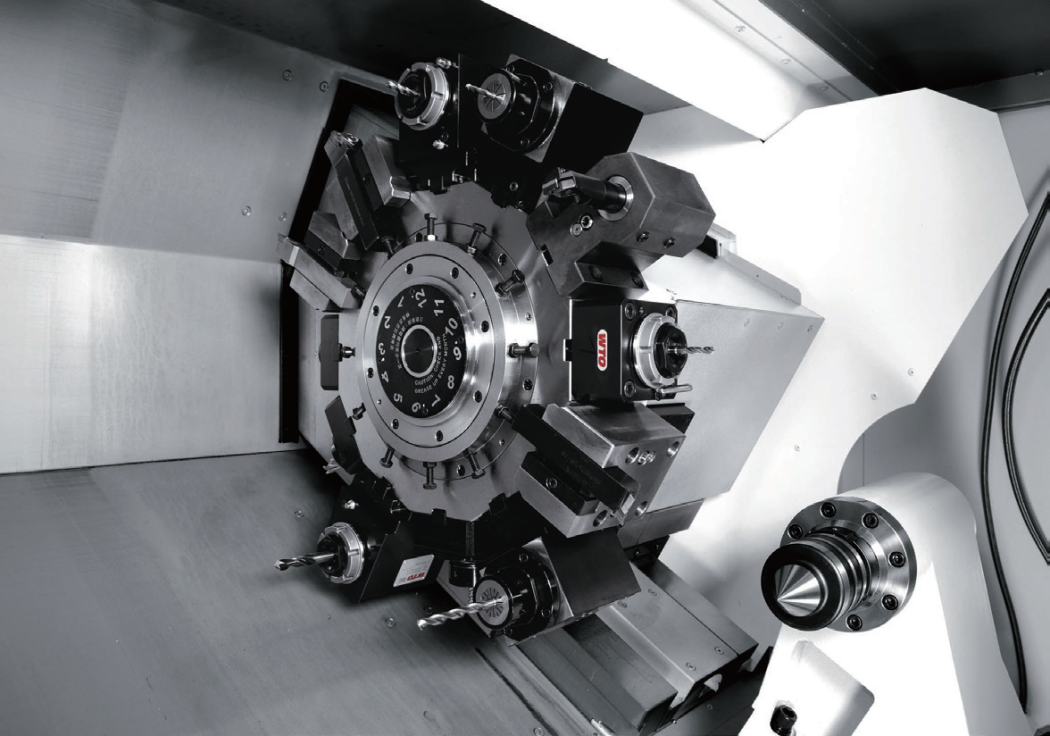

During this year’s industrial forum MachTech & InnoTech RAIS demonstrated in front of brand specialists the impressive capabilities of the Takisawa Taiwan LX2500ML7 model, part of the LX-2500 series. “The machine distinguishes itself with its reliable construction with inclined prismatic guides, C axis, turret with rotating tools, tailstock with large quill diameter and integrated gearbox in the spindle box – for additional stability and high torque. The inclined bed with ground prismatic guides guarantees durability, vibration stability and constant geometric accuracy during long cycles," commented RAIS.

Takisawa Taiwan internally produces a large number of its component for its metalworking machines, which ensures control over quality and reliability during intense operations.

Main technical characteristics of the LX2500ML7:

Maximum turning diameter: 420 mm;
Maximum workpiece length: 698 mm;
Maximum workpiece diameter: 81 mm (75 mm with gearbox);
Maximum spindle speed: 3500 rpm;
Standard turret: T12 with 12 positions;
10” jaw so-called front head standard equipment;
FANUC 0i-TF PLUS CNC control.
